High Performance Drills - Aluminum & Aluminum Alloys - Pilot Drills
High Performance Drills for Aluminum Alloys
Valor Holemaking's High Performance Pilot Drills for Aluminum & Aluminum Alloys provide outstanding performance for piloting applications 8xD or greater in 6061 Aluminum and aluminum alloys.
- Designed to Achieve Precision Drilling in 6061 Aluminum
- Optimized for best-in-class performance in 6061 Aluminum with superior performance in Aluminum and Aluminum Alloys

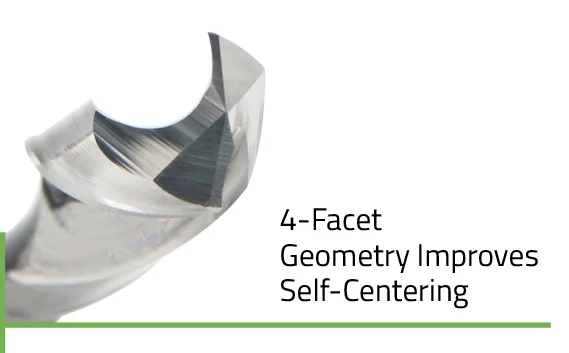

- 135° point angle with 4-facet geometry for improved self-centering
- +0.005mm / +0.013mm (+0.0002” / +0.0005”) Custom tolerance suitable for piloting when drilling 8xD or greater
- h6 shank tolerance for high precision tool holders
- Proprietary Val-Max V coating delivers outstanding performance in Aluminum Alloys and other Non-Ferrous Alloys
- Solid carbide
- Precision manufactured in the USA
Advanced Search
| Drill Diameter | Max Drill Depth | Flute Length | Point Angle Length | Shank Diameter | Overall Length | Val-Max V Coated | Add to Cart | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | D1 mm (+0.005mm / +0.013mm) | inch | L2 | hole depth | L3 | L4 | D2 (h6) | L1 | TOOL # | PRICE | ||
